Weapon-AA Gun and Launcher

12.7×108 mm

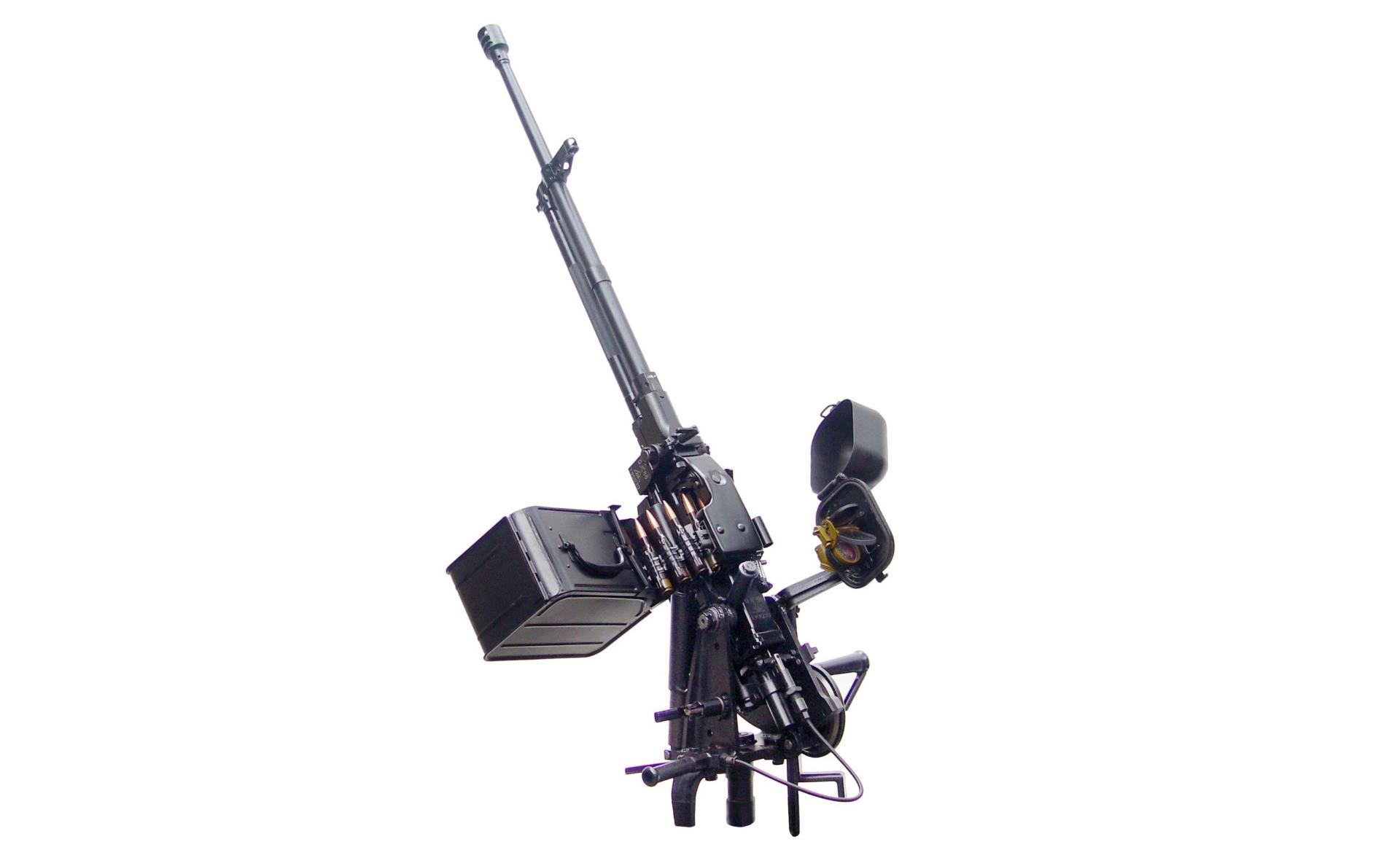

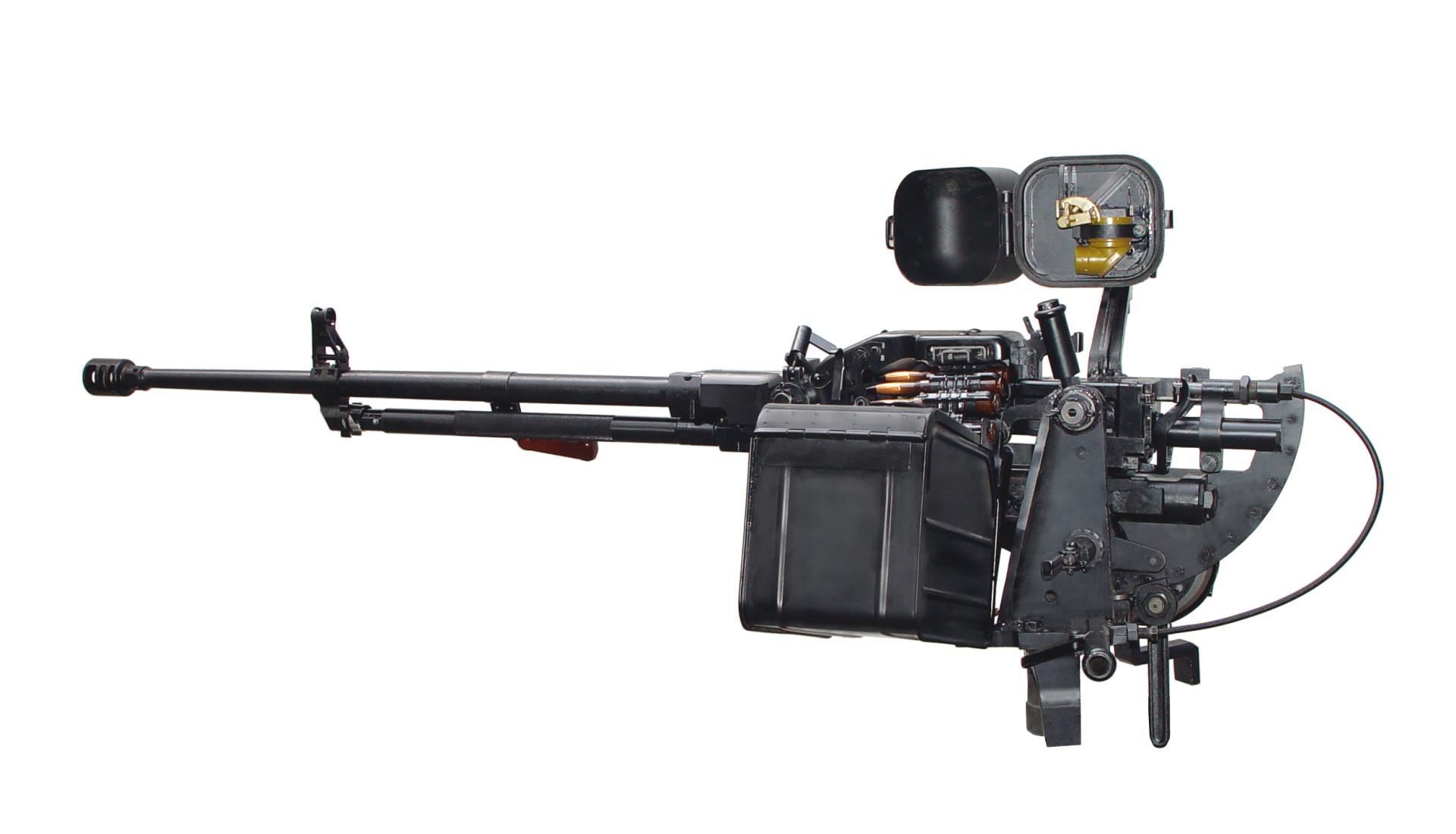

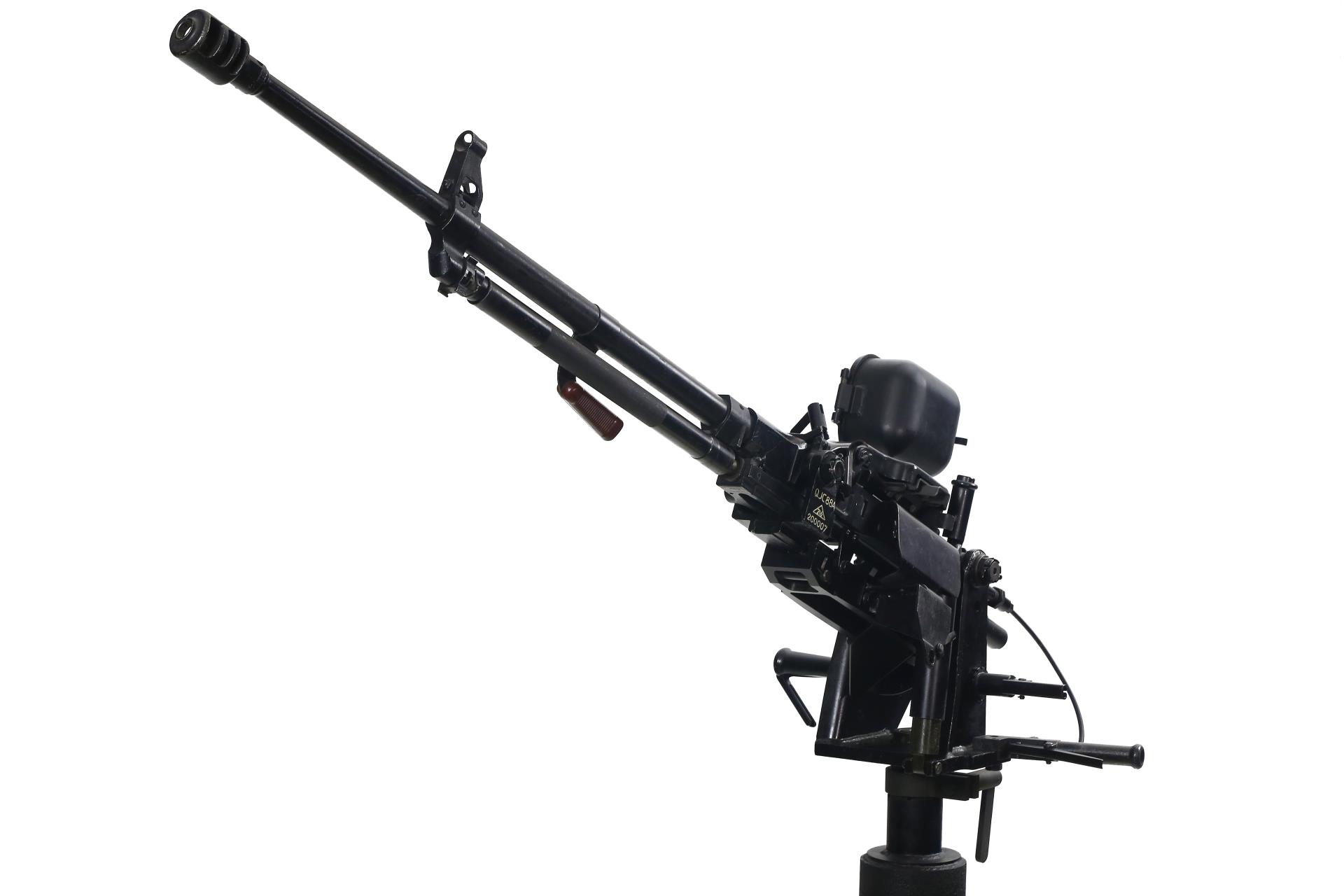

12.7 mm Vehicular Machine Gun type W88

Technical Specification

  • Ammo 12.7mm API
  • Length 1,502 mm
  • Weight 54kg (including a 60rd ammo link and ammo can)
  • Theoretic muzzle velocity 800 m/s (12.7mm API); 1150m/s (discarding sabot)
  • Effective range (540～600）rpm
  • Service life ≥6,000 rd
  • Aiming line length 869 mm
  • Elevation limit –6°～＋85°
  • Traverse limit 360°(on gun turret）
  • Accessory gun mount×1, day vision sight ×1, spare barrel×1, spare bolt assembly×1, cleaning and tool pack×1
