Weapon-Mortar and Rocket

60mm

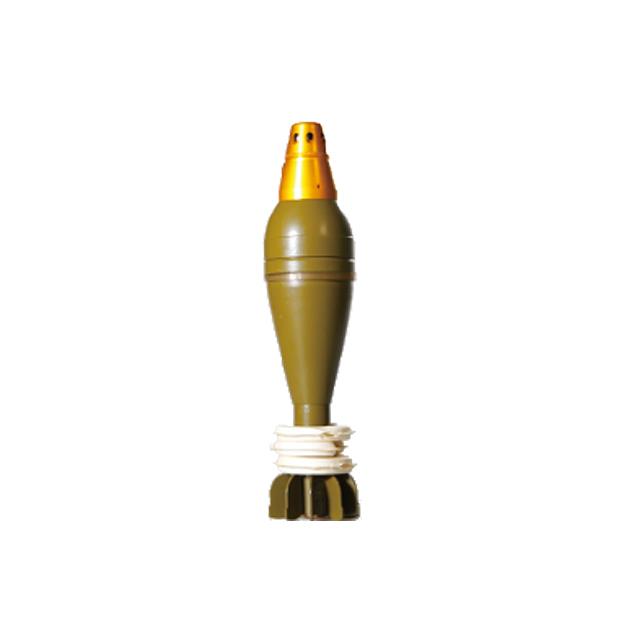

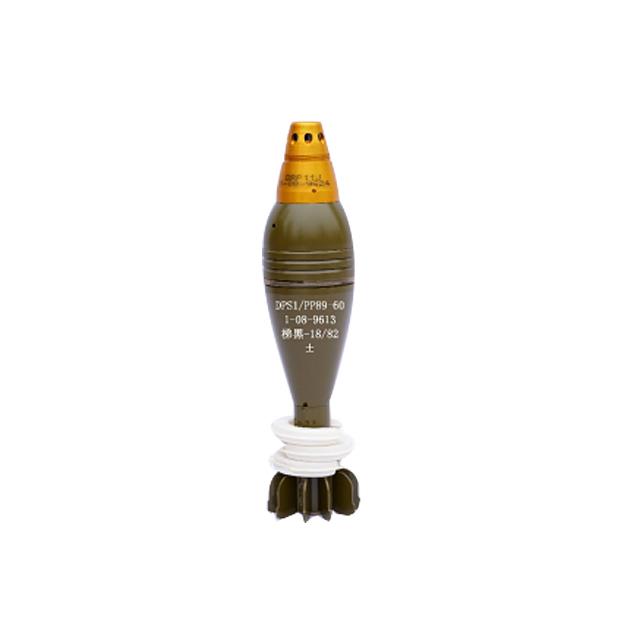

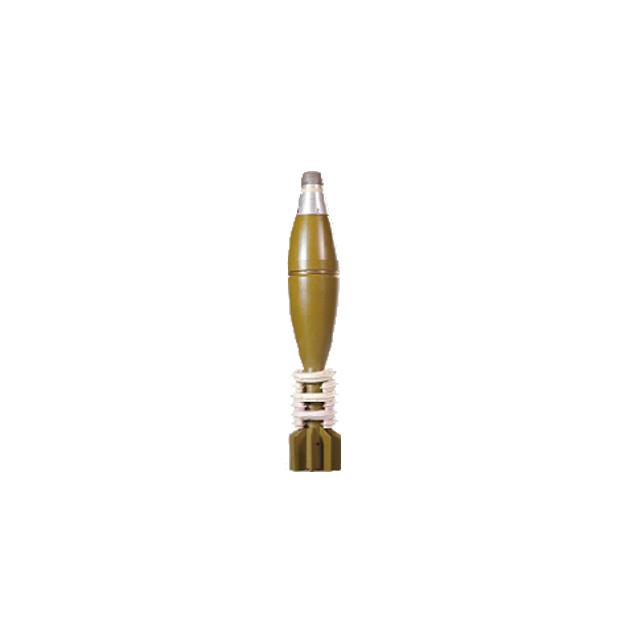

Mortar HE Shell Type PP89

Technical Specification

  • Packing wooden boxes, dimension: 630×310×250mm, gross weight: 28kg, 12rds/box
  • Storage life 15 years
  • Operational temperature -40℃~50℃
  • Fuze DRP11C, MP-5EB, MP-5F
  • Lethal radius ≧15m
  • Ground dispersion at max range rx≦1/100, rz≦1/200
  • Min range ≦160m
  • Max range ≧2860m(Charge no.3)
  • Shell total weight 252.5mm(fuze type DRP11C); 249.5mm(fuze type MP-5EB); 243.5(fuze type MP-5F)
  • Flying weight 1.36kg
  • Applied mortar 60mm Mortar PP89/PP93
