Weapon-Mortar and Rocket

81mm

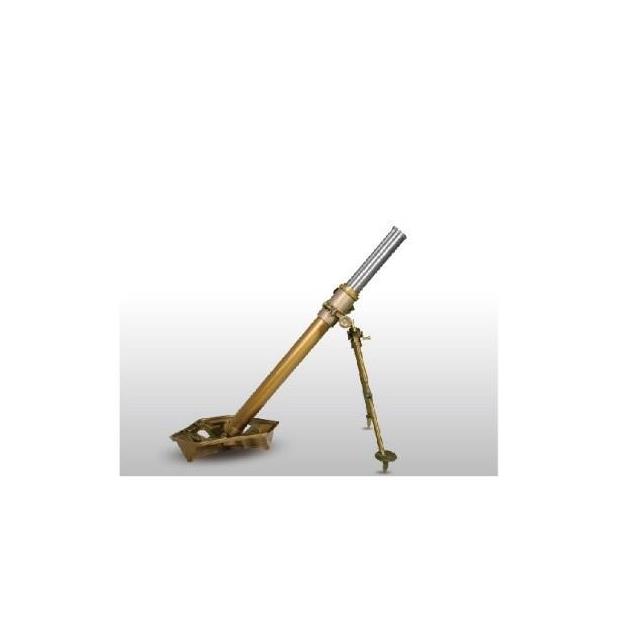

Light Mortar Model W87

Technical Specification

  • barrel body 1540×580×400mm
  • Packing Wooden box
  • Operation temperature -40°C~50°C
  • Total weight(without sight) 27kg
  • Azimuth 3°30′ on both sides
  • Elevation 45°~85°
  • Rate of fire 20 shells/min

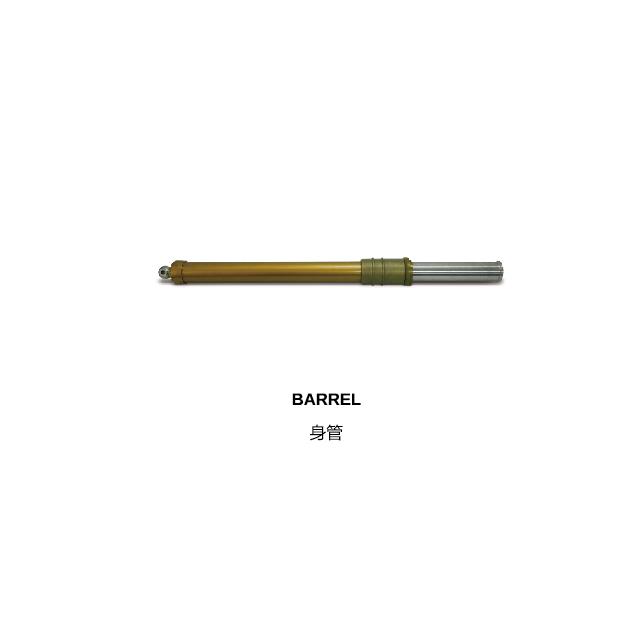

  • Barrel length 1400mm
  • Dispersion at max range 1/130 longitudinal 1/250 lateral
  • Min range 120m
  • Max range 5600m
  • Caliber 81mm
