Weapon-Mortar and Rocket

60mm

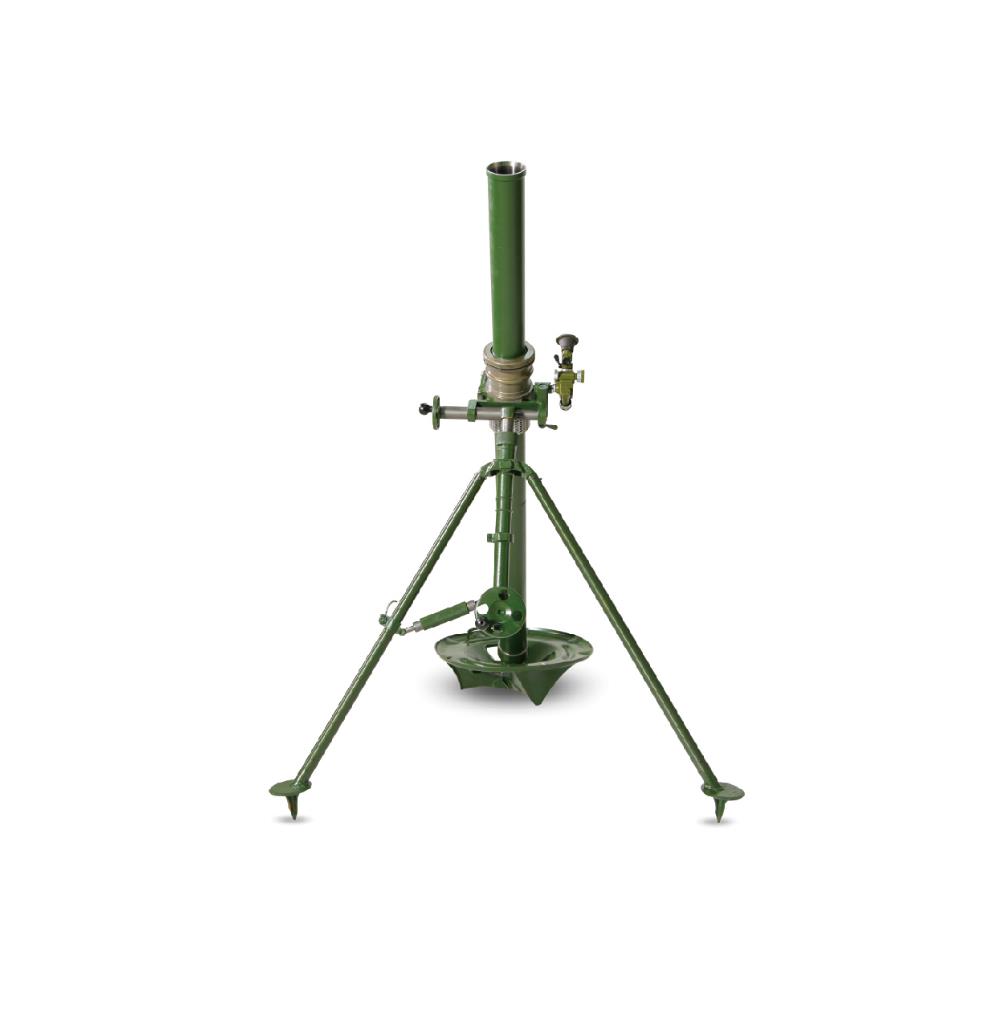

Mortar Model PP93

Technical Specification

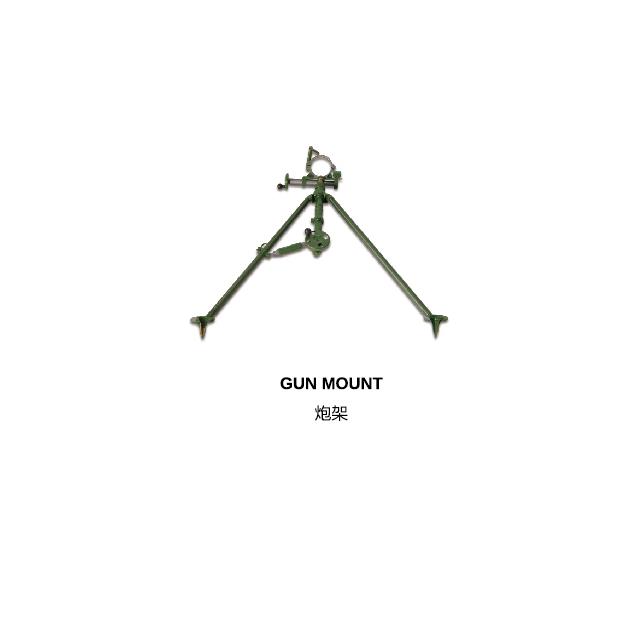

  • gun mount 550×490×350mm, 2 mounts inside, 27Kg

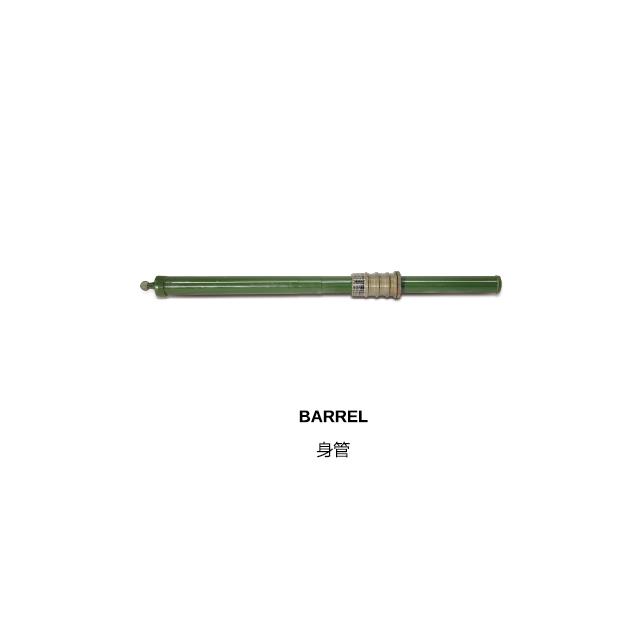

  • barrel body 1500×510×350mm, 2 barrel bodies inside, 74Kg
  • Packing Wooden box
  • Operation temperature -40°C~50°C
  • Total weight(without sight) 22.9kg
  • Azimuth 4° on both sides
  • Elevation 45°~85°
  • Rate of fire 13 shells/min
  • Barrel length 1300mm
  • Dispersion at max range 1/100 longitudinal 1/250 lateral
  • Min range 151m
  • Max range 5034m
  • Muzzle velocity 240m/s
  • Caliber 60.75mm
