Vehicle-Vehicles

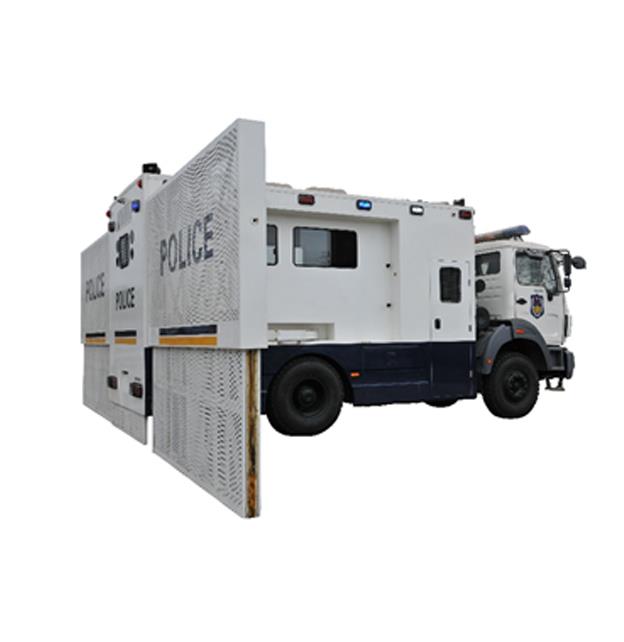

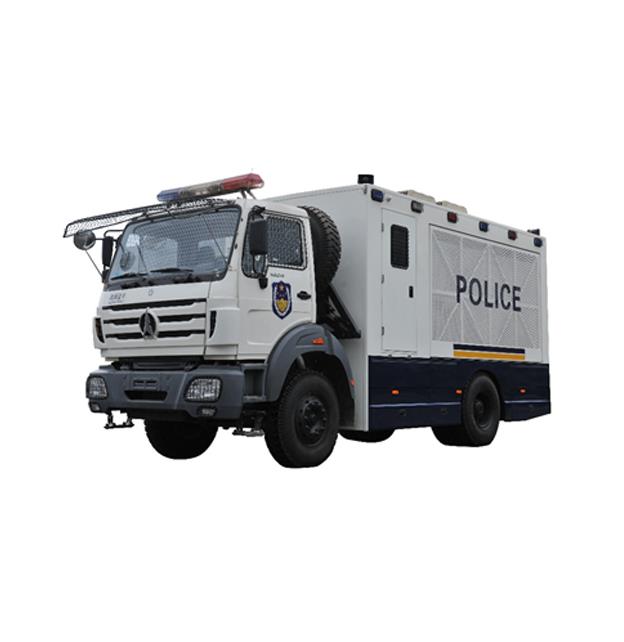

Automatic Roadblock Vehicle

Anti-riot protection
Driver’s cab and rear window are protected by metal net
Rear display screen protected by easily-replaceable PC plate

Technical Specification

  • Lifting illumination and camera Lifting height 1.8m,traverse 360°
  • Fire extinguishing system Dry powder fire extinguisher
  • Air conditioning 4kW
  • Steering system Hydraulic power assisted
  • Brake system Air brake
  • Mechanical Forward 5 Reverse 1
  • Type Mechanical
  • 193 Diesel
  • Max. rated power(kW) 193
  • Max. bearable thrust (KN) 1.5
  • Unfolding time(S) ≯90±5
  • Unfolded size (mm) L9350×W3110
  • Size of unit mesh(mm) φ12
  • Max.climbing gradient (%) 30
  • Max.range(km) Max.range(km)
  • Max.highway speed(km/h) 90
  • Approach/ Departure angle(°) 18/13
  • Ground clearanc(mm) 315
  • L×W×H(mm) 8052×2500×3850 (From ground to top plate)
  • Curb weight(kg) 13000
  • Full combat weight(kg) 16000
  • Number of doors 4
  • Crew 2+11
  • Drive type 4×2
