Vehicle-Vehicles

4×4

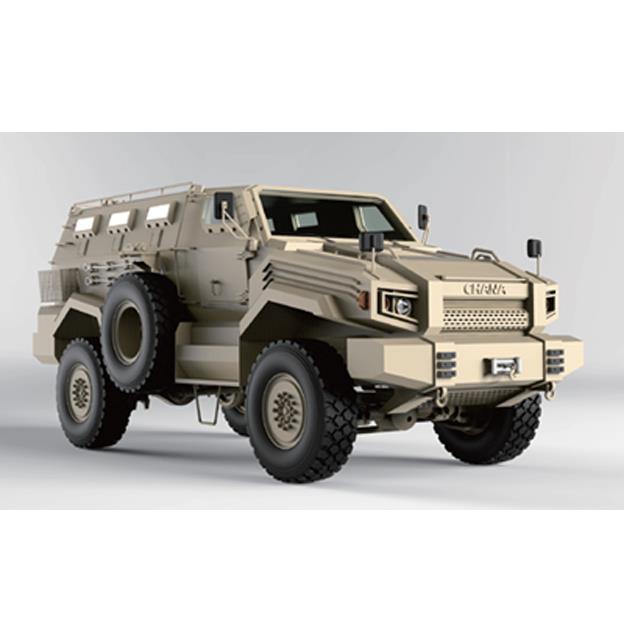

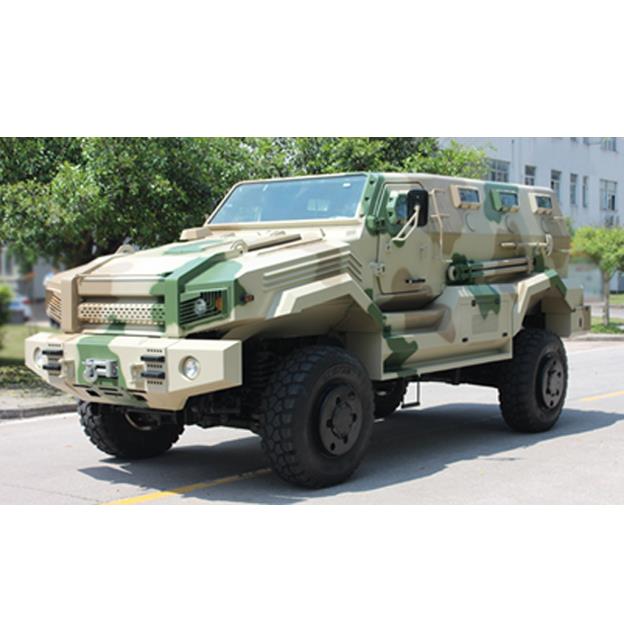

High-Mobility Mine Resistant Ambush Protected Vehicle CS/VP14

High mobility
The 4×4 MRAPV Type CS/VP14 has an excellent mobility in rural area, desert, plateaus, severe cold or high temperature environment. The driver can adjust the air pressure in different road by the central inflation system. The max speed is 120km/h, and the minimum turning radius is 8m.

Survivability:
The whole vehicle can resist the 7.62mm ball ammunition within 30m, and its defense level can be upgrade according to the customer’s demand.
Any position and wheel in vehicle chassis can resist the mine equivalent to 8kg TNT. The protection ability can meet NATO STANAG 4569-3b level.

Technical Specification

  • Left/Right hand drive (depending user’s requirement)
  • Low temperature start-up system
  • Mine-resisted seat with four-point type safety belt
  • Bullet-proof tyre
  • Central inflation system in tyre
  • V-mode mine-resisted unit body
  • Helical spring individual suspension
  • Fast automatic transmission
  • Cummins ISDe285 30 engine
  • Maximum climbing slope 60°
  • Maximum speed 120km/h
  • Length×width×height 6600×2600×2650
  • Total combat weight 9000kg
  • Crew 2+8 persons
  • Wheel base 3700mm
  • Engine power 210KW
  • Driving type full time four-wheel drive
